S-CASE
Designed for servers or mining. Simple in use.
S-CASE 1
SERWER CASE- Compact size
- Power button at front or back
- Up to 7 drives
S-CASE 2
Minig case / CHIA- Up to 32 HDD drives
- 2 x PSU
- Great airflow
S-CASE 2 v2
Updeted version / CHIA- Up to 36 HDD drives
- 2 x PSU
- 2 x ATX motherboard available
S-CASE 3
SERWER CASE- Solid shape
- Work position horizontal / vertical
- Up to 10 drives
| S-CASE 1 | S-CASE 2 | S-CASE 2 v2 | S-CASE 3 | |
|---|---|---|---|---|
| Material: | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] | Steel DX51D+Z 1,5 [mm] |
| Motherboard support | ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX | 2 x ATX, micro-ATX, mini-ITX | ATX, micro-ATX, mini-ITX |
| Socket HDD 3,5" | 6 | 32 | 36 | 8 |
| Socket HDD 2,5" | 1 | 2 | 2 | 2 |
| Expansion slots | 7 | 7 | 2 x 7 | 7 |
| Cooling support | - | FAN 4 x 90 [mm] | FAN 4 x 120 [mm] | - |
| Cooler support | - | - | - | - |
| PSU position / PSU standard | Veritcal / ATX | 2 x Vertical / ATX | 2 x Vertical / ATX | Horizontal / Vertical / ATX |
| CPU cooling height | No limit | No limit | No limit | No limit |
| Max GPU length | No limit | No limit | No limit | No limit |
| Cable management | 90 [mm] | - | - | - |
| Work position | Horizontal | Horizontal | Horizontal | Horizontal / Vertical |
| Power button | Front and back | Front | Front | Front |
| Weight | 1,9 [kg] | 6,9 [kg] | 8 [kg] | 2,8 [kg] |
| Dimensions | 28,8 x 43,3 x 18,9 [cm] | 30,3 x 47,5 x 35,5 [cm] | 33 x 65 x 36 [cm] | 29,3 x 23,2 x 32 [cm] |
S-CASE 4
Great for crypto or AI
- Full compactybility with ASROCL H510 PRO BTC+
- 5 x PSU
- 5 x GPU
- compare with GTX 4090
- 5 x GPU
- compare with GTX 4090
S-CASE 5
SERWER CASE- Up to 9 drives HDD and 2 SSD
| S-CASE 4 | S-CASE 5 | |||
|---|---|---|---|---|
| Material: | Steel DX51D+Z 2,0 [mm] | Steel DX51D+Z 1,5 [mm] | ||
| Motherboard support | ASROCk H510 PRO BTC+ | ATX, micro-ATX, mini-ITX | ||
| Socket HDD 3,5" | 0 | 9 | ||
| Socket HDD 2,5" | 1 | 2 | ||
| Expansion slots | 5 x GPU | - |
||
| Cooling support | - | - | ||
| Cooler support | - | - | ||
| PSU position / PSU standard | 5 x Horizontal / ATX | Horizontal / ATX | ||
| CPU cooling height | 80 [mm] | No limit | ||
| Max GPU length | No limit | No limit | ||
| Cable management | - | 100 [mm] | ||
| Work position | Horizontal | Horizontal | ||
| Power button | On motherboard | On side | ||
| Weight | 11,7 [kg] | 3,8 [kg] | ||
| Dimensions | 58,9 x 25,5 x 39,1 [cm] | 32,4 x 30,3 x 11,4 [cm] |
- The power supply separated by silicone spacers does not cause vibrations.
- The mainboard is mounted on brass sleeves.
- Separated directly by vibration damping pads.
- The case has numerous holes for aesthetic arrangement of wires.
- The set includes a set of screws and washers for mounting the motherboard, power supply, expansion cards, drive and fans.
Available version
RAW
Not painted, no LED power button.
The external color is obtained by galvanizing.
On the surface there are visible traces of bending of the forms and possible laser burns.

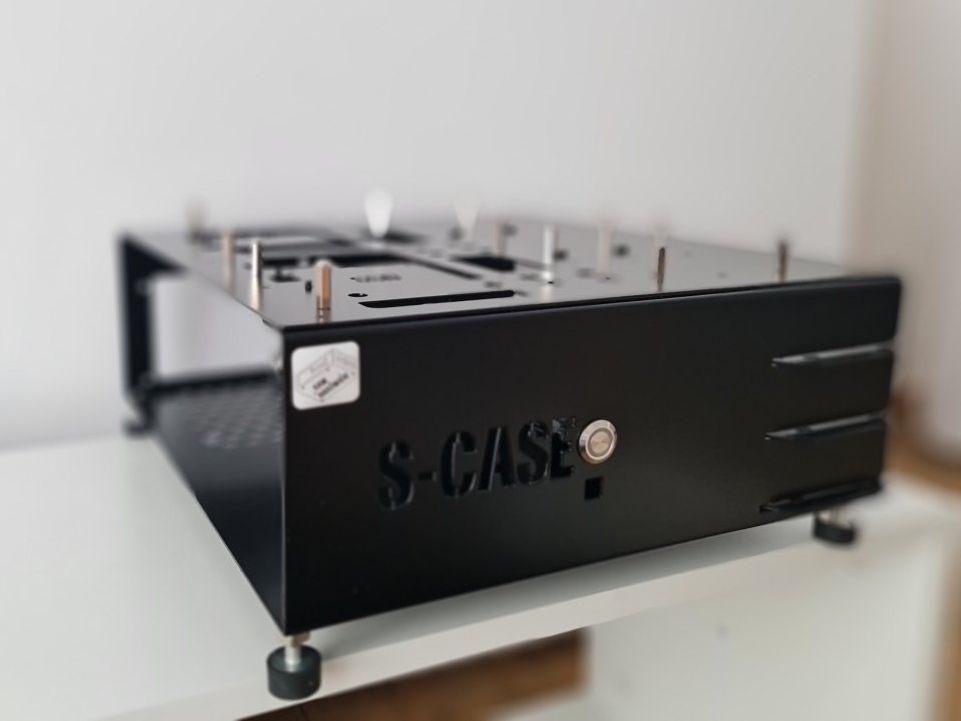

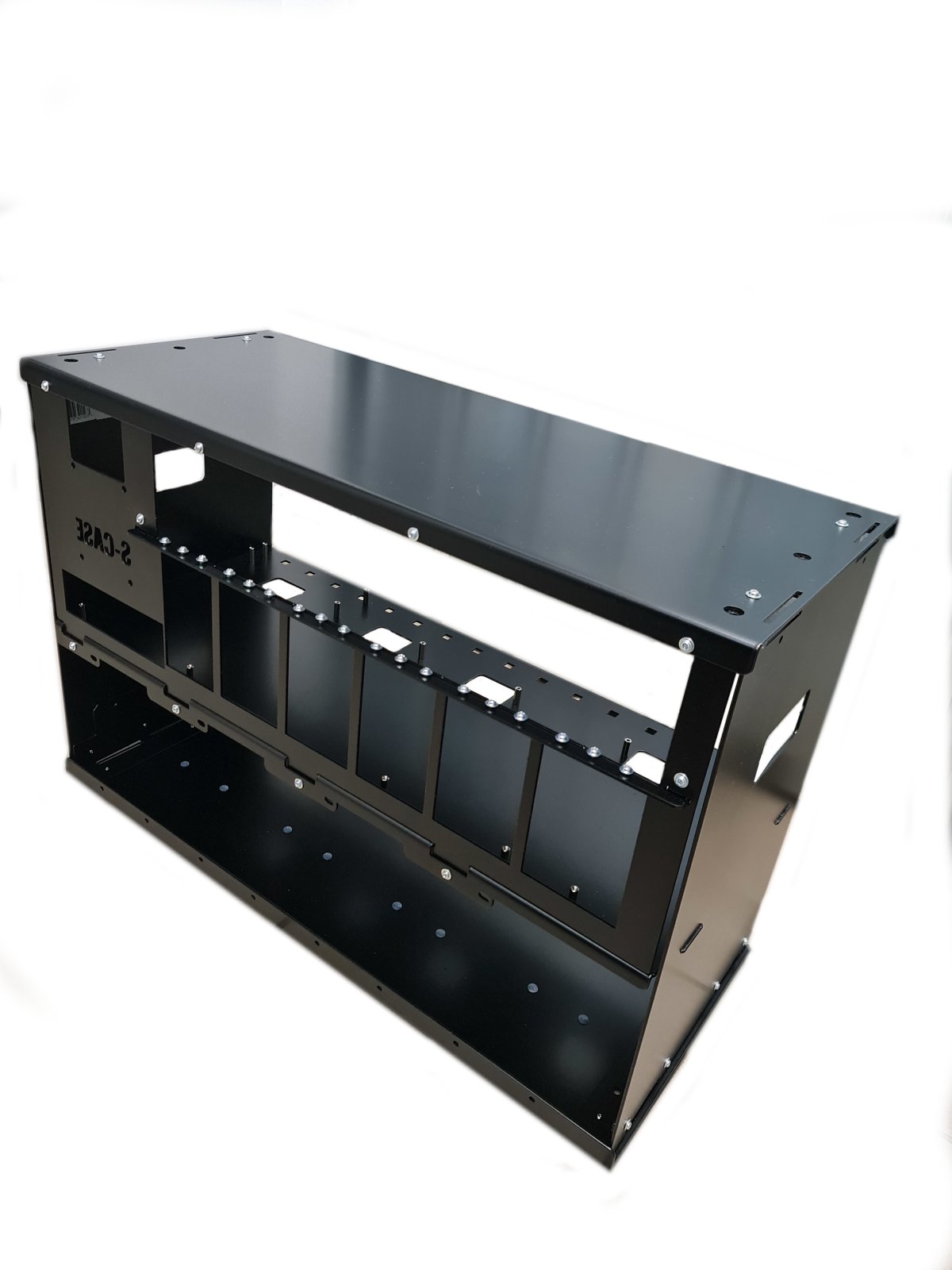

RAL
Powder coated in any RAL color.
Durable and aesthetic coating.
LED power button is included.
